Car Elevator

This is the facility in which the vehicle is loaded on the cage and is vertically moved to the selected location. For the indirect hydraulic type, building can efficiently be utilized as the location of mechanical room can freely be decided, and in the case of rope type, there is no limitation about the height of building. As the ramp space needs not to be used, space utilization can be maximized.

Features & Benefits

  • The feeling of movement is smooth as this is driven by hydraulic cylinder.
  • With inverter control method, the rope type has the advantages of reducing the power supply capacity of building, and providing fast speed as well as smooth feeling of movement.
  • Operation is convenient with simple manipulation.

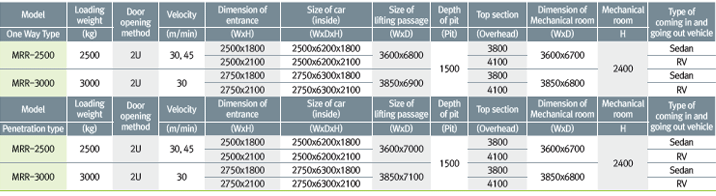

Standard on the elevator for automobile (Rope type)

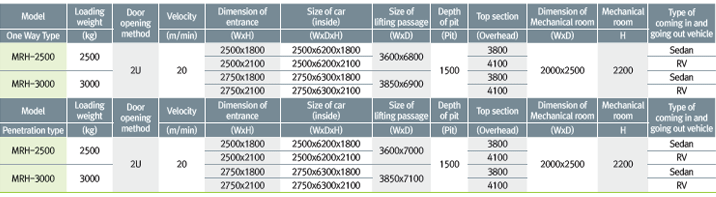

Standard on the elevator for automobile (Hydraulic type)
